Orbital Drilling

Portable Orbital Drilling Units are versatile lightweight drilling units based on Novator’s patented Orbital Drilling technology.

Designed for hard and complex materials.

Portable Orbital Drilling Units are designed for drilling cylindrical and countersunk holes in hard materials such as Titanium, Stainless steel and any combination stack-ups including these materials, now produced and supported by Electroimpact.

The Orbital Drilling Concept.

Novator’s patented orbital drilling technology is based on simultaneously rotating a cutting tool around its own axis and a center axis that is offset from the cutting tool’s axis.

Highlights:
  • Variable manual offset adjustment
  • Programmable feed rate
  • Programmable orbital speed
  • Automatic hole identification
  • Fool proof operation procedures
  • Minimal Quantity Lubrication (MQL) or pressurized air through the spindle axis

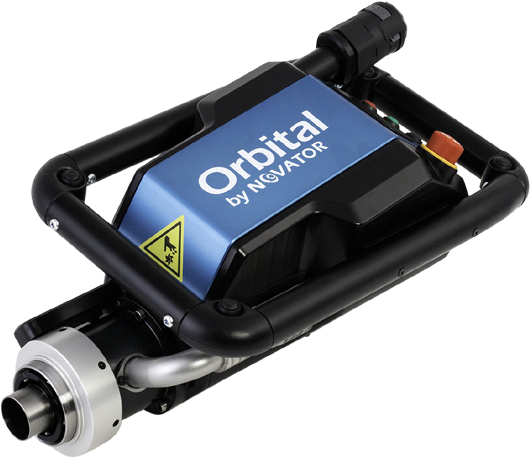

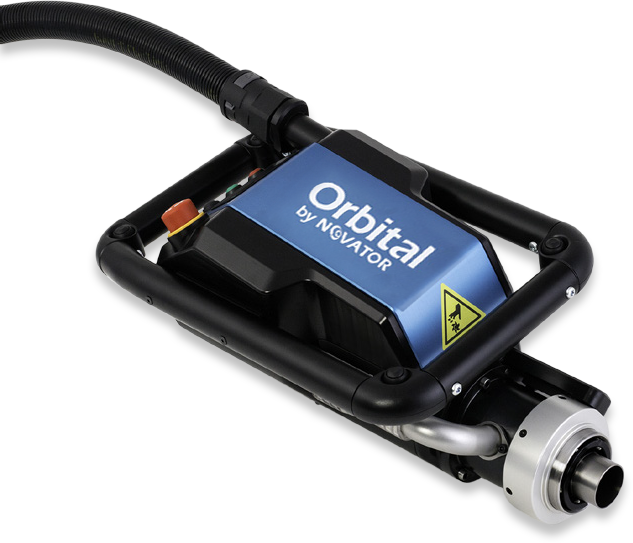

PM40
Drill stroke length:40 mm
Machining spindle speed (± 15%):1700/ 2500/ 5000 rpm
Machining spindle power:450 / 990/ 950 W
Weight (excl. nose piece):10 kg
Spindle torque (at max effect):4/ 9/ 5 Nm
Orbital spindle speed:0-100 rpm
Orbital spindle power:150 W
Adjustable orbital offset:0-6 mm diametric
Axial feed:Electrical Speed Control
Axial feed rate:0 – 600 mm/min
Tool holding/chuck:HSK 25
Max material thickness:32 mm
Max rec. tool diameter:20 mm*
Max hole diameter:25 mm*
* Pre Drilled Holes

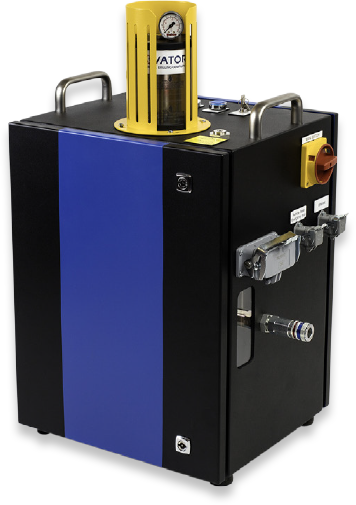

Control Box
Power supply: 100 - 240 VAC
Size mm (HxWxD) 551x360x701
Pneumatic connections
Air pressure: 6-7 bar (87 - 101psi)
Air consumption: 1000 l/min (35.3 CFM)
Air capacity requirements: Min. capacity 2000l/min (70.6 CFM)

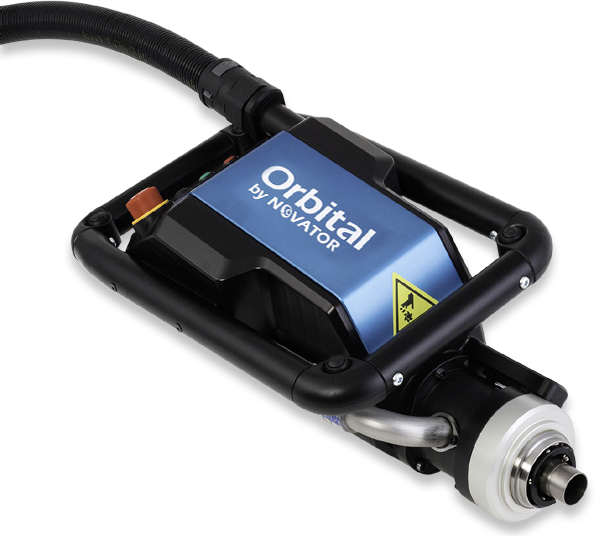

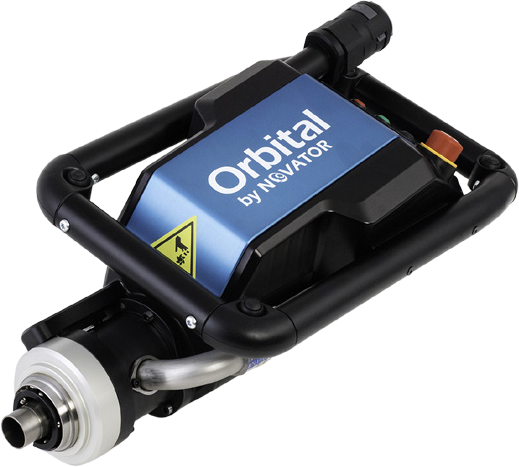

PM50
Drill stroke length:50 mm
Machining spindle speed (± 15%):1700 rpm
Machining spindle power:550 W
Weight (excl. nose piece):10 kg
Spindle torque (at max effect):5.5 Nm
Orbital spindle speed:0-100 rpm
Orbital spindle power:150 W
Adjustable orbital offset:0-8 mm diametric
Axial feed:Electrical Speed Control
Axial feed rate:0 – 600 mm/min
Tool holding/chuck:Integrated Tool Holder EH20
Max material thickness:42 mm
Max rec. tool diameter:20 mm*
Max hole diameter:28,5 mm*
* Pre Drilled Holes

Control Box
Power supply: 100 - 240 VAC
Size mm (HxWxD) 551x360x701
Pneumatic connections
Air pressure: 6-7 bar (87 - 101psi)
Air consumption: 1000 l/min (35.3 CFM)
Air capacity requirements: Min. capacity 2000l/min (70.6 CFM)

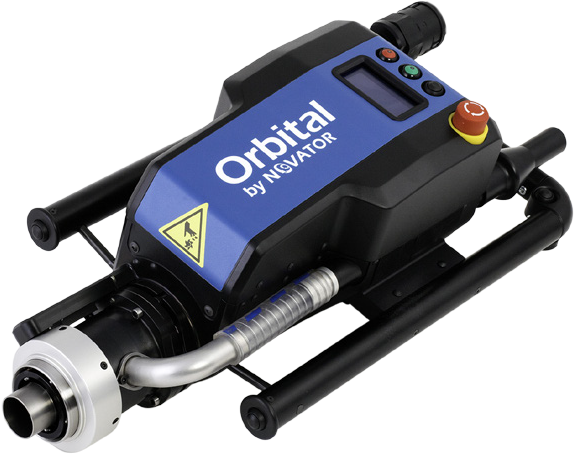

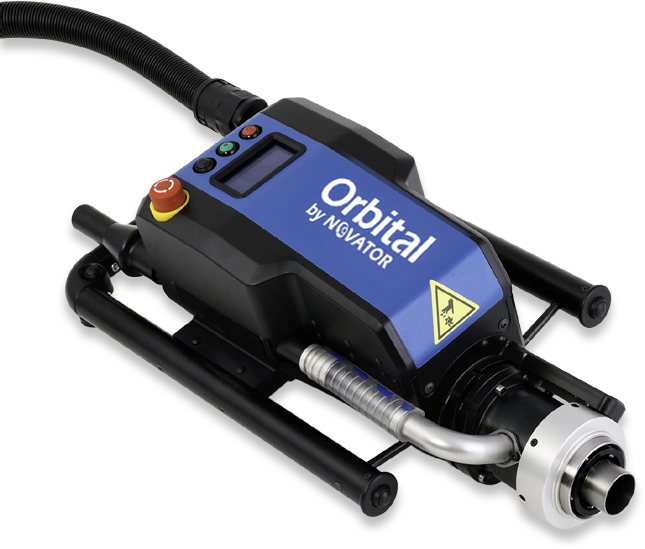

PM60
Drill stroke length:60 mm
Machining spindle speed (± 15%):1600/ 2300/ 5000 rpm
Machining spindle power:450 / 990/ 950 W
Weight (excl. nose piece):12,7 kg
Spindle torque (at max effect):4/ 9/ 5 Nm
Orbital spindle speed:0-100 rpm
Orbital spindle power:150 W
Adjustable orbital offset:0-6 mm diametric
Axial feed:Electrical Speed Control
Axial feed rate:0 – 600 mm/min
Tool holding/chuck:HSK 25
Max material thickness:52 mm
Max rec. tool diameter:20 mm*
Max hole diameter:25 mm*
* Pre Drilled Holes

Control Box
Power supply: 100 - 240 VAC
Size mm (HxWxD) 551x360x701
Pneumatic connections
Air pressure: 6-7 bar (87 - 101psi)
Air consumption: 1000 l/min (35.3 CFM)
Air capacity requirements: Min. capacity 2000l/min (70.6 CFM)

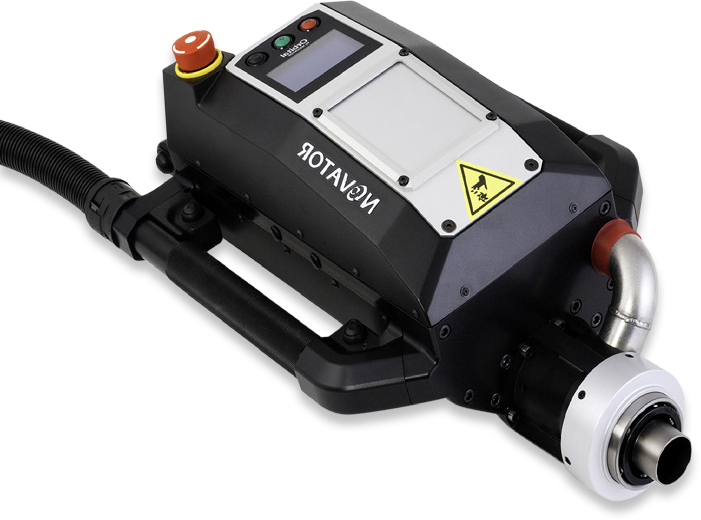

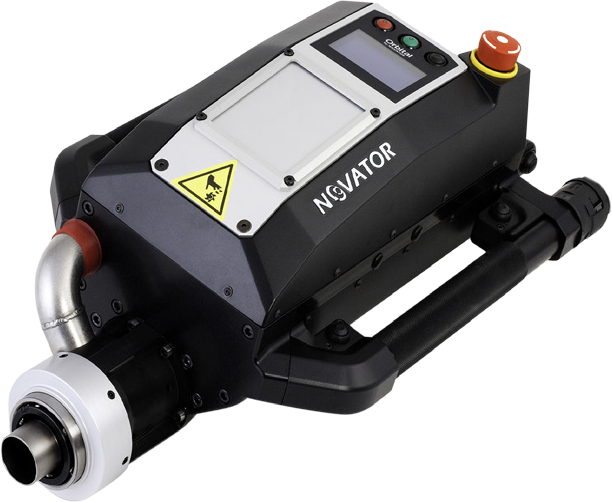

PMA70
Drill stroke length:70 mm
Machining spindle speed (± 15%):1500 /2300 rpm
Machining spindle power:550 W
Weight (excl. nose piece):16,1kg
Spindle torque (at max power):8/ 4,5 Nm
Orbital spindle speed:0-80 rpm
Orbital spindle power:150 W
Adjustable orbital offset:0-8 mm diametric
Axial feed:Electrical Speed Control
Axial feed rate:0 – 300 mm/min
Tool holding/chuck:HSK 25
Max material thickness:60 mm
Max rec. tool diameter:19 mm*
Max hole diameter:27 mm*
* Pre Drilled Holes

Control Box
Power supply: 100 - 240 VAC
Size mm (HxWxD) 551x360x701
Pneumatic connections
Air pressure: 6-7 bar (87 - 101psi)
Air consumption: 1000 l/min (35.3 CFM)
Air capacity requirements: Min. capacity 2000l/min (70.6 CFM)

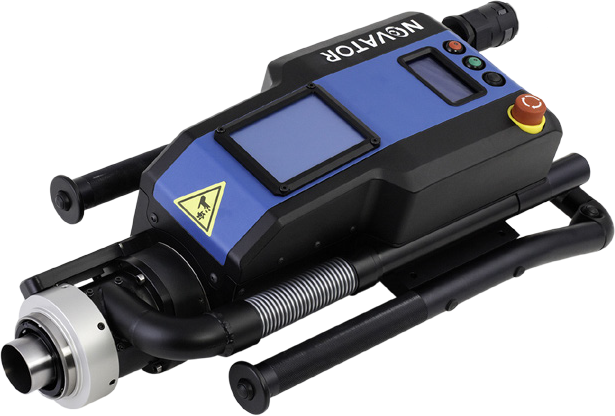

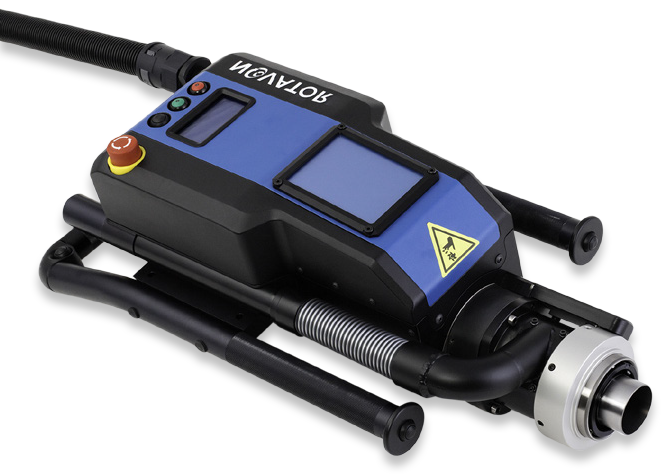

PM80
Drill stroke length:80 mm
Machining spindle speed (± 15%):1500 rpm
Machining spindle power:950 W
Weight (excl. nose piece):17,3 kg
Spindle torque (at max effect):14 Nm
Orbital spindle speed:0-80 rpm
Orbital spindle power:150 W
Adjustable orbital offset:0-9 mm diametric
Axial feed:Electrical Speed Control
Axial feed rate:0 – 300 mm/min
Tool holding/chuck:HSK 32
Max material thickness:75 mm
Max rec. tool diameter:20 mm*
Max hole diameter:25 mm*
* Pre Drilled Holes

Control Box
Power supply: 100 - 240 VAC
Size mm (HxWxD) 551x360x701
Pneumatic connections
Air pressure: 6-7 bar (87 - 101psi)
Air consumption: 1000 l/min (35.3 CFM)
Air capacity requirements: Min. capacity 2000l/min (70.6 CFM)

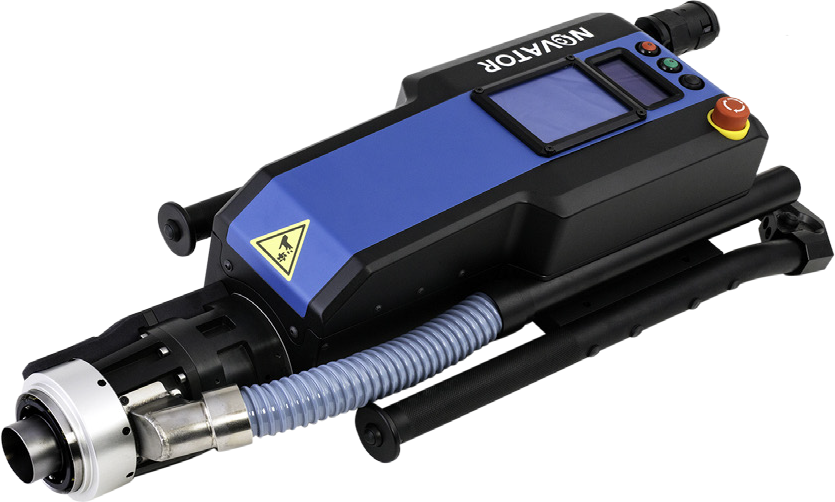

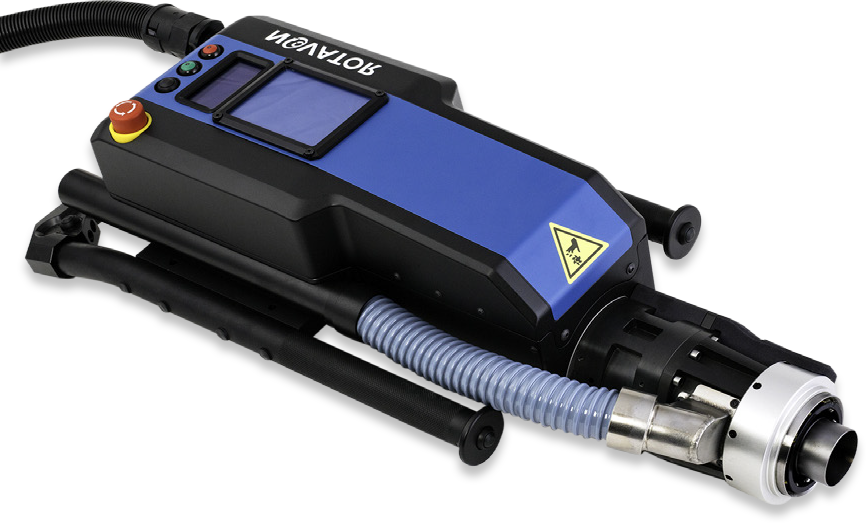

PM120
HSK32/Integrated Tool Holder EH25
Drill stroke length:120 mm/120 mm
Machining spindle speed (± 15%):850 rpm/850 rpm
Machining spindle power:950 W/950 W
Weight (excl. nose piece):20 kg/20 kg
Spindle torque (at max effect):20 Nm/20 Nm
Orbital spindle speed:0-80 rpm/0-80 rpm
Orbital spindle power:150 W/150 W
Adjustable orbital offset:0-9 mm diametric/0-9 mm diametric
Axial feed:Electrical Speed Control/Electrical Speed Control
Axial feed rate:0 – 300 mm/min/0 – 300 mm/min
Tool holding/chuck:HSK 32/Integrated Tool Holder EH25
Max material thickness:108 mm/108 mm
Max rec. tool diameter:20 mm*/25 mm*
Max hole diameter:25 mm*/32 mm*
* Pre Drilled Holes

Control Box
Power supply: 100 - 240 VAC
Size mm (HxWxD) 551x360x701
Pneumatic connections
Air pressure: 6-7 bar (87 - 101psi)
Air consumption: 1000 l/min (35.3 CFM)
Air capacity requirements: Min. capacity 2000l/min (70.6 CFM)
Burrless and
Delamination-Free Holes

The orbital technology allows Orbital PM-Series to use a low thrust force. Lower force in combination with orbital movement of the cutter produces burrless holes in metal. Lower thrust also enables drilling of delamination-free holes in composite materials, and risk of part deflection is reduced when drilling in stacks.

One Tool - Different hole sizes

Orbital PM-Series has a manually adjustable offset of the cutting tool. By changing the offset, different hole sizes can be made with one single tool.

Burrless and
Smaller, easier-to-remove chips

Orbital drilling reduces chip-induced damage. Novator’s tools have a smaller diameter than the hole and produce smaller chips that are efficiently removed in an advanced airflow system. Efficient chip extraction also enables drilling in closed sections.

Dry Drilling

The orbital drilling cutter has only partial and intermittent contact with the material. That, together with efficient air cooling of the cutting tool and the hole surface, enables dry drilling or quasi-dry drilling, which requires MQL. Efficient heat extraction also reduces risk of matrix melting in composites and heat-affected zones in metal.
