Handheld Electromagnetic Rivet Gun

The Electroimpact line of HH products are one shot HandHeld riveting systems designed for use with a variety of solid alloy rivets. The electronic synchronization of the actuators allows for this system to install both headed and slug rivets with ease. When used properly, this system allows the operator to install rivets in a safe and efficient manner. Our EMR units can be purchased as stand alone cart-mount systems or conveniently integrated into other portable machinery such as our manlifts.

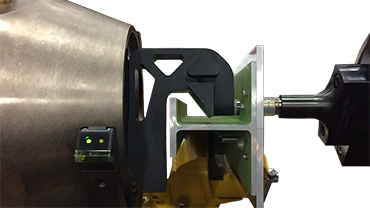

• Two handheld riveting actuators, approximately 215 lbs each, suspended on counterbalances
• Rivets:
  • Maximum rivet size: 7/16"(-26)
  • Alloys: KE, D, AD
  • Styles:
    • Index Head (FH)
    • Slug (BB)
• Various front tooling:
  • Extentions
  • Offset rams with plastic deflectors
• Two capacitor enclosures, a master and slave, weighing in at 250 lbs each
• Control enclosure with a 15” touch-panel, PLC, and power disconnect
• External isolation transformer (200V, 50Hz)
• Standalone rollaway frame (10ftx10ft)
• 144 custom user configured presets
• 900 Volts
• Two 25-foot pulse cables
• Integrated cooling air + signal cable in one spiral assembly

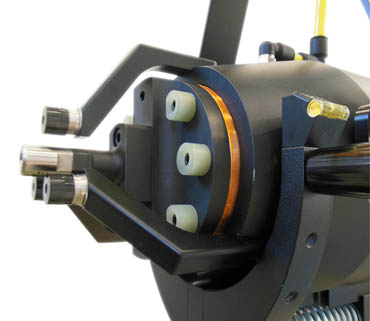

• Two handheld riveting actuators, approximately 95 lbs each, suspended on counterbalances
• Rivets:
  • Maximum rivet size: 3/8"(-12)
  • Alloys: KE, D, AD
  • Styles:
    • Index Head (FH)
    • Slug (BB)
    • Universal Head (FT)
• Two capacitor enclosures, a master and slave, weighing in at 220 lbs each
• Control enclosure with a touch-panel, PLC, and power disconnect
• External isolation transformer (220V, 50Hz)
• Stand alone rollaway frame (10ftx10ft)
• 500 Volts

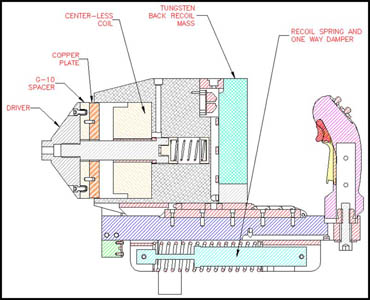

• HH-553 with increased operating voltage
  • 1000V
• Each actuator weighs approximately 120 lbs
  • Mass increased to reduce recoil
• Larger maximum rivet size; up to 7/16"
• Integrated with Siemens C7-636 PLC
• 144 user configured presets

• Two handheld riveting actuators weighing approximately 8 lbs each
• Rivets:
  • Maximum rivet size 3/16" (-6)
  • Alloys: KE, D, AD
  • Styles:
    • Index Head (FH)
    • Slug (BB)
    • Universal Head (FT)
• Two 25-foot pulse cables carrying both signal and air to each actuator

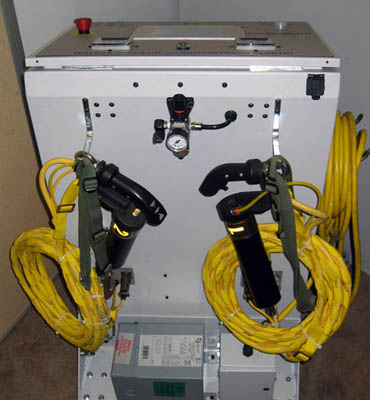

• One console enclosure weighing 330 lbs:
  • Siemens touch-panel, CPU314-2DP PLC
  • Two banks of capacitors (one for each actuator)
  • External isolation transformer (220V, 50Hz)
• 1000 Volts
